sps24180 = Charging Kit chk24180+ 55 Ah, 24 v Gel Battery + 600 W Inverter + Twin Socket Circuit Breaker Lead Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps24360 = Charging Kit chk24360+ 55 Ah, 24 v Gel Battery + 600 W Inverter + Twin Socket Circuit Breaker Lead Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps24540 = Charging Kit chk24540+ 100 Ah, 24 v Gel Battery + 600 W Inverter + Twin Socket Circuit Breaker Lead Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps24720 = Charging Kit chk24720+ 100 Ah, 24 v Gel Battery + 600 W Inverter + Twin Socket Circuit Breaker Lead Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps1285 = Charging Kit chk1285+ 55 Ah Gel Battery + 300 W Inverter + Twin Socket Circuit Breaker Lead
Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps12170 = Charging Kit chk12170+ 55 Ah Gel Battery + 300 W Inverter + Twin Socket Circuit Breaker Lead
Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps12255 = Charging Kit chk12255+ 100 Ah Gel Battery + 300 W Inverter + Twin Socket Circuit Breaker Lead
Discount of 5% on orders of 5 or more (maximum of 9 units.) |
|
sps12340 = Charging Kit chk12340+ 100Ah Gel Battery + 300 W Inverter + Twin Socket Circuit Breaker Lead
Discount of 5% on orders of 5 or more (maximum of 9 units.) |
Out of Stock
Out of Stock
Out of Stock
Out of Stock
Out of Stock
Out of Stock
Out of Stock
Out of Stock
|

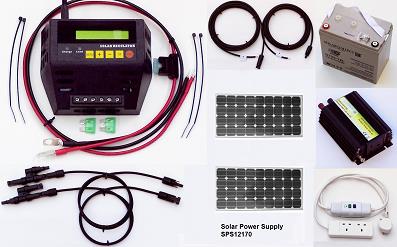

sps12170 cables and wiring diagrams provided |
|

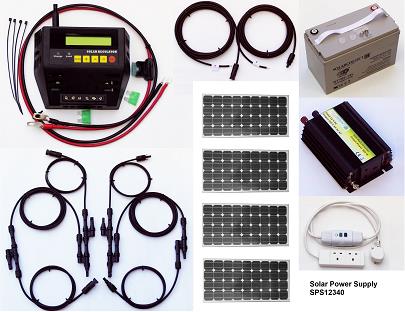

sps12340 cables and wiring diagrams provided |
|

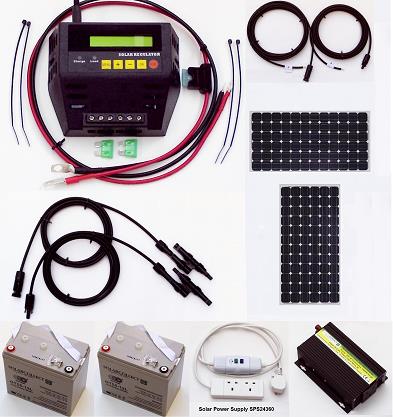

sps24360 cables and wiring diagrams provided |
|

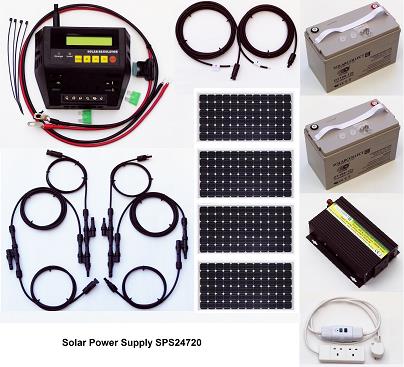

sps24720 cables and wiring diagrams provided |
|

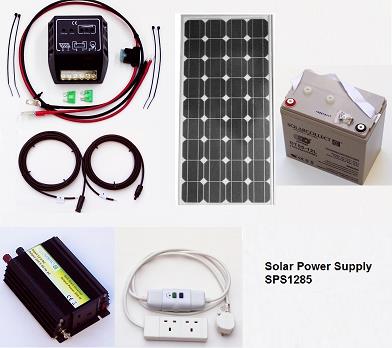

sps1285 cables and wiring diagrams provided |
|

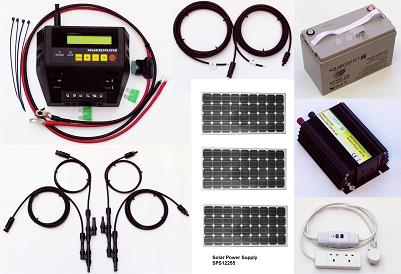

sps12255 cables and wiring diagrams provided |
|

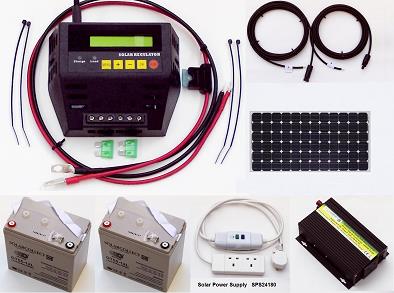

sps24180 cables and wiring diagrams provided |
|

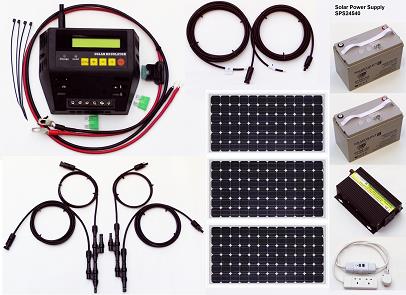

sps24540 cables and wiring diagrams provided |
|
Solar Power Supply Kits - 12 v Battery |
|
|
|
|
|||
|
Based on 85 W peak Panel* of 36 grade "A" Monocrystalline Cells; Output ≈ 19 v |
|
|
|||||
|
Product Code |
Number of Panels in Parallel |
Maximum Solar Current /Amps |
Controller Supplied with the Kit |
Long Life, Solar Storage Battery Supplied |
Summer Daily Average Energy / Wh† |
Winter Daily Average Energy / Wh† |
Approx. Daily Run time for 3 Low Energy mains Lamps Summer /Winter |
|
sps1285 |
1 |
4.5 |
12 A Analogue |
12 v, 55 Ah |
180 |
72 |
6 h / 2.4 h |
|
sps12170 |
2 |
9.0 |
20 A Digital |
12 v, 55 Ah |
360 |
144 |
12 h / 4.8 h |
|
sps12255 |
3 |
13.5 |
20 A Digital |
12 v, 100 Ah |
540 |
216 |
18 h / 7.2 h |
|
sps12340 |
4 |
18.0 |
20 A Digital |
12 v, 100 Ah |
720 |
288 |
24 h / 9.6 h |
|
|
|
|
|
|
|
|
|
|
*For optimally oriented panels. The output may be reduced by up to 30% for horizontal panels. |
|
|
|
|
|||
|
†For daily stored charge in Ah, divide by 12. |
|
|
|
|
|||
|
Solar Power Supply Kits - 24 v Battery |
|
|
|
|
|||
|
Based on 180 W peak Panel* of 72 grade "A" Monocrystalline Cells; Output ≈ 36 v |
|
|
|||||
|
Product Code |
Number of Panels in Parallel |
Maximum Solar Current /Amps |
Controller Supplied with the Kit |
Long Life, Solar Storage Battery Supplied |
Summer Daily Average Energy / Wh† |
Winter Daily Average Energy / Wh† |
Approx. Daily Run time for 6 Low Energy mains Lamps Summer /Winter |
|
sps24180 |
1 |
4.9 |
20 A Digital |
24 v, 55 Ah |
384 |
151 |
6.4 h / 2.5 h |
|
sps24360 |
2 |
9.8 |
20 A Digital |
24 v, 55 Ah |
768 |
302 |
12.8 h / 5.0 h |
|
sps24540 |
3 |
14.7 |
20 A Digital |
24 v,100 Ah |
1152 |
454 |
19.2 h / 7.6 h |
|
sps24720 |
4 |
19.6 |
20 A Digital |
24 v,100 Ah |
1536 |
605 |
24 h / 10.1 h |
|
|
|
|
|
|
|
|
|
|
*For optimally oriented panels. The output may be reduced by up to 30% for horizontal panels. |
|
|
|
|
|||
|
†For daily stored charge in Ah, divide by 24. |
|
|
|
|
|||
