20 Tube Kit

40 Tube Kit

Pool Array

To top of page

To top of page

swhk20 = 20 Tube Collector Kit

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

swhk40 = 40 Tube Collector Kit

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

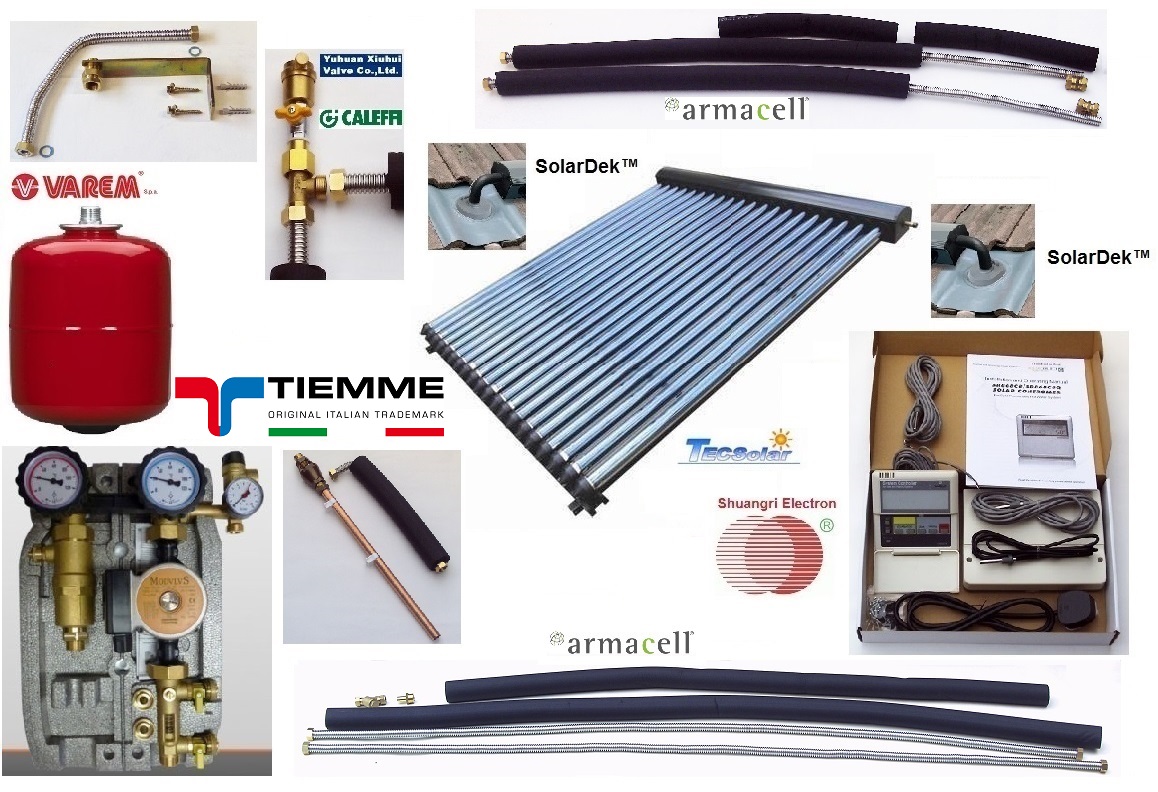

20 Tube Kit—Components List

Solar Collect 20 x 58 mm Collector with Solar Keymark*

Stainless Steel Roof fixing straps for slate or flat tile.*

Tiemme twin line Pump Station with Grundfos Solar 15/65 pump*

Bracket with Quick Connect/ Disconnect Kit and 12 l Varem Expansion Vessel*

Pipework and Fittings, including Caleffi Aluminium Tundish, for safety drain assembly*

Automatic Air Vent, isolating Ball valve and T Connector with integral mesh filter*

Solardek coated Lead/Silicone Roof Flashings for ST pipes and Temp. sensor cable*

2 x 1.5 m 19 mm Insulated* stainless DN16 flexible piping with all fittings for easy through roof connection.

2 x 2m 19 mm Insulated* DN16  flexible piping + all fittings for easy connection from pump station to Cylinder.

High temperature Y—strainer and fittings to connect at the cylinder outlet return line for drainage and pump protection*

SR868 C8/9 Digital Solar Pump Controller with 3 sensors and multiple built in protection functions, including over heat and freeze protection.*

* Items required in the standard for MCS approval.

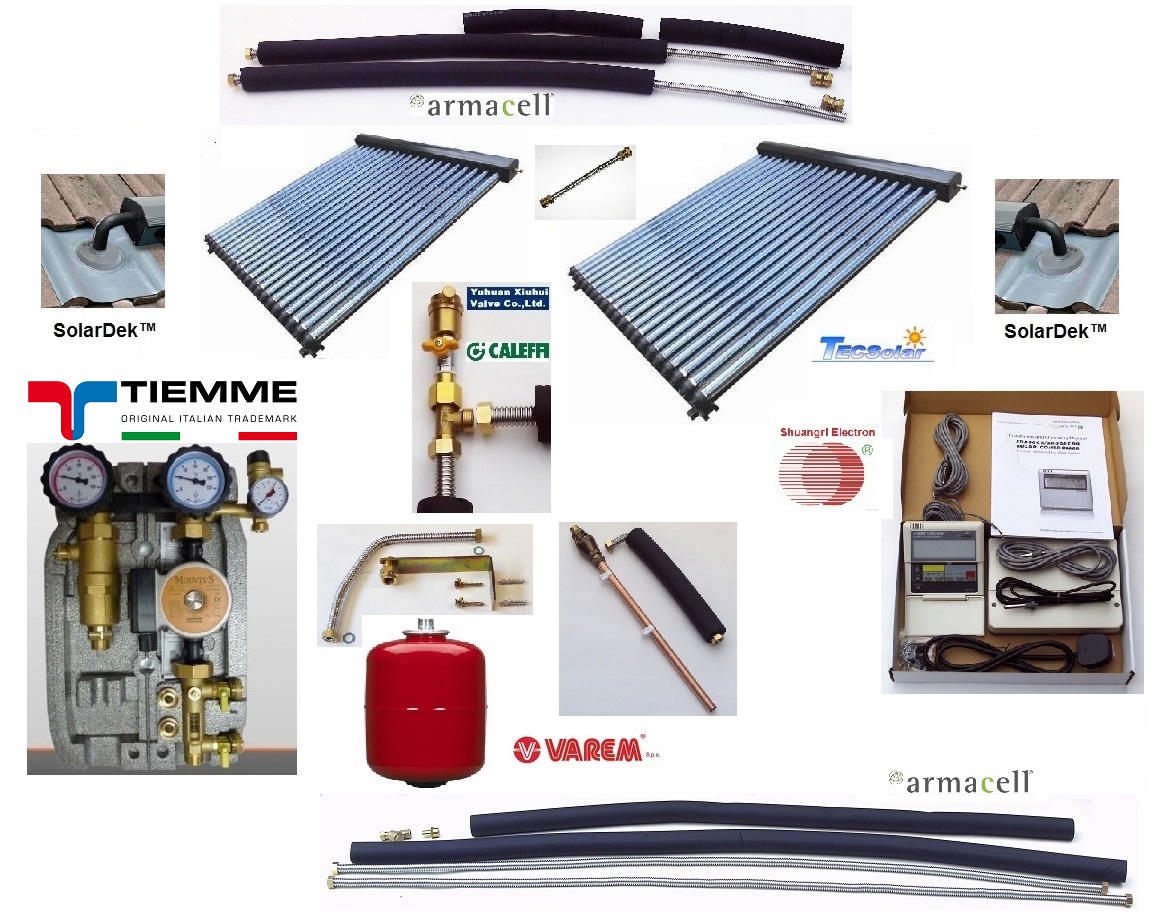

40 Tube Kit—Components List

2 x Solar Collect 20 x 58 mm Collector with Solar Keymark*

Flexible Stainless Steel Connector with insulation

Stainless Steel Roof Fixing Straps for a slate roof*

Tiemme twin line Pump Station with Grundfos Solar 15/65 pump*

Bracket with Quick Connect/ Disconnect Kit and 12 l Varem Expansion Vessel*

Pipework and Fittings, including Caleffi Aluminium Tundish, for safety drain assembly*

Automatic Air Vent, isolating Ball valve and T Connector with integral mesh filter*

Solardek coated Lead/Silicone Roof Flashings for ST pipes and Temp. sensor cable*

2 x 1.5 m 19 mm Insulated* stainless DN16 flexible piping with all fittings for easy through roof connection.

2 x 2m 19 mm Insulated* DN16  flexible piping + all fittings for easy connection from pump station to Cylinder.

High temperature Y—strainer and fittings to connect at the cylinder outlet return line for drainage and pump protection*

SR868 C8/9 Digital Solar Pump Controller with 3 sensors and multiple built in protection functions, including over heat and freeze protection.*

* Items required in the standard for MCS approval.

frs5sc = 5 Collector Array with Flat Roof Stands

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

5 Collector Array with Flat Roof /Ground  Stands

Complete with flexible SS links

Solar Key marked 20 tube collectors.

The lightweight stainless steel stands are easily assembled and are angled at 40° to the horizontal (optimum for UK).

The flexible connectors allow for minor movement and ease of access.

For heating larger quantities of water up to 500 l or the warming of small pools or tubs.

Delivered securely by pallets within the UK mainland.

Please contact us for European delivery.

Picture shows 4 collector array.

Swimming pool not included!
