Solar Expansion Vessel 12 l

DAB Wet Rotor Circulator Pumps

Intelligent, Heating and Solar Controller SR868 C8/9

The volume of this expansion vessel is sufficient for most domestic solar systems, that use a single solar thermal collector.

A flexible diaphragm separates the heat transfer liquid from an inert gas that is pre-pressurised to 2.5 bar.

It is constructed from high tensile steel with an anti-corrosion surface treatment. It can be used with solar circuits at pressures up to a maximum of 6 bar.

Seamed galvanized steel flange with a 3/4” BSPP thread.

VA 55/130, Circulator Pump

For domestic and solar circuits

Resists glycol corrosion up to 30%

Temperature range up to 110 °C

Max water head 5.5 m.

1.5" hydraulic connections

Data sheet and explanation in

Downloads section.

va55130pm = Circulator Pump

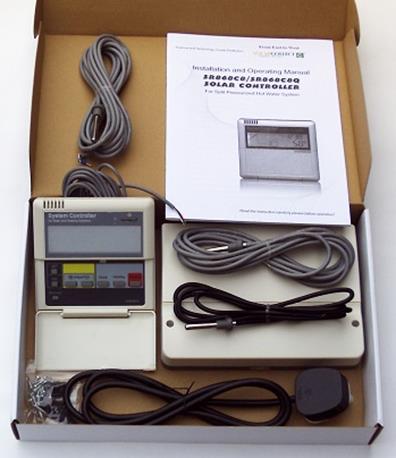

This is a sophisticated digital timer and differential temperature controller for domestic systems.

Includes 2 relay outputs for mains pumps, 1 for an auxiliary heater, 1 for an E.M. Valve, 4 inputs for temperature probes and a Freeze Control function.

It is simple to set up and is supplied with a 1000 Ohm Pt collector probe, 2 NTC thermistor tank probes and a detailed installer manual that can be viewed in Downloads section.

Quantity
Quantity
Quantity

Shuangri

Electron

Quantity

VSA 55/130, Solar Pump

Special electrophoresis coating

Resists glycol corrosion up to 60%

Temperature peaks up to 140 °C

Max water head 5.5 m.

1.5" hydraulic connections

Data sheet and explanation in

Downloads section.

vsa55130pm = Solar Pump



Produced by a leading international manufacturer, this product is capable of intelligently integrating a solar system with almost any domestic boiler. It really is exceptional value!

Further pictures in the Downloads section.

Automatic Air Vent, Isolating Valve, Mesh Filter  and Solar T Connector

Quantity

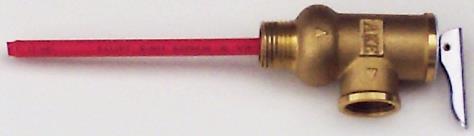

Over Temperature / Pressure Relief Valve

This is an important safety requirement for closed and pressurised hot water tanks. In the unlikely event of the pressure rising above 6 bar or the temperature rising above 90 deg. C, fluid will be vented to a drain.

A legal requirement for wood burning or other solid fuel boilers.

Please note, due consideration should be given to the pipe layout so that hot, high pressure fluid can be vented safely.

Input and Output Thread (1/2 ” BSPP)

Quantity

Flexible Connector, DN16 Annular SS Pipe with 22mm Compression Joints

These expansion connectors are an absolute requirement when 5 or more solar collectors are connected in series.

They may also be used for smaller arrays when high levels of solar radiation are expected.

They are 35 cm long and are ready to connect directly to the manifold pipe of the TS20-58 via the 22mm compression joint.

Quantity

Adjustable Roof Bracket For Solar Collector

These rigid Fixing Brackets are screwed directly into the rafters or additional pieces of roofing batten fixed between the rafters.

They exit from between two tile layers and give a rise of 50mm or more to the collector frame.

They can be used on most types of flat, ridged or interlocking tiles. They are fabricated from 4 mm stainless steel.

They can also be used to mount PV modules.

Quantity

Flat Roof Stand for Solar Collector, TS-20-58PA

A strong, but light weight, frame for mounting a TS20 Solar Thermal Collector on a flat roof.

It is made from corrosion free stainless steel and assembles with stainless steel nuts and bolts.

The 40° incline is the optimum for the European summer.

It is easy to assemble and is complete with guide and warranty.

frst = Flat Roof Stand

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

Quantity

SolarDek Flashing for Solar Thermal Installations

SolarDek is the safest, most efficient method of flashing solar thermal pipes and cables on tile and slate roofs.

The Nu-Lead acrylic primer coated base will not corrode and is safe to handle.

The Dektite  grey silicone cone suites solar thermal pipe sizes up to 35 mm.

Temperature resistant to +200°C.

Base Size. 490mm x 410mm

Purpose made durable solution as required by MCS.

deksf = Deks Solar Flashing - Silicone Cone in Lead Base

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

Quantity

solcon = Digital Pump Controller

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

tprv = Over Temperature /Pressure Relief Valve

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

£ 19.95   (£ 23.94  Inc. VAT)
1 in stock

auaiv = Automatic Air Vent and Isolating Valve

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

£ 9.16   (£ 10.99  Inc. VAT)
More than 10 in Stock

scej = SS Flexible Connector with 22mm Compression Joints

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

£ 4.96   (£ 5.95  Inc. VAT)
More than 10 in Stock
£ 19.95   (£ 23.94  Inc. VAT)
More than 10 in Stock

sev12= Solar Expansion Vessel

Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

adrbsc = Adjustable Roof Bracket

 Further Details

Discount of 5% on orders of 5 or more

(maximum of 9 units)

£ 5.95   (£ 7.14  Inc. VAT)
More than 10 in Stock
£ 36.95   (£ 44.34  Inc. VAT)
More than 10 in Stock
£ 59.95   (£ 71.94  Inc. VAT)
1 in stock
£ 32.95   (£ 39.54  Inc. VAT)
1 in stock
£ 29.95   (£ 35.94  Inc. VAT)
2 in stock
£ 59.46   (£ 71.35  Inc. VAT)
More than 10 in Stock

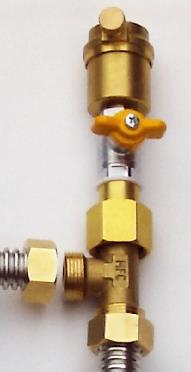

The Vent is fitted to the highest part of the solar circuit in order to remove air from the circuit whilst filling.

It is connected in series with a 3/8” isolating ball valve that is closed off after  commissioning is complete.

The brass 3/8”— 3/4 “ adaptor contains an integral SS wire mesh filter to protect the precision components.

The flat faced 3/4 “ M BSPP equal T is suitable for connection to DN16 stainless steel Solar Pipe, as shown.

(Solar pipework not included.)

The assembly is rated to withstand the high temperatures of a solar circuit, the Vent to 150 C and the Ball Valve to 180 C.

It can be fitted either inside the roof space or outside, directly to the Collector Outlet.

Air Vent— Xiuhui Valves Ltd.

Isolator– Caleffi Solar
